This 26" LCD arcade monitor is the perfect replacement for CRT monitors! It's a commercial grade retro arcade monitor that's compatible with most Dance Dance Revolution arcade cabinets.

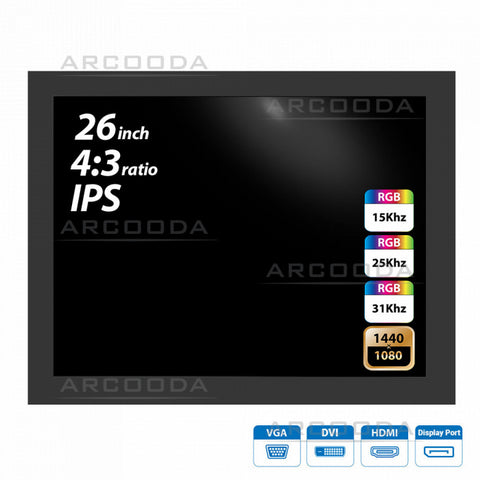

This 26 inch 4:3 ratio Arcooda LCD arcade monitor offers 1440x1080 resolution and supports 15khz 24khz 31khz, and high definition. With VGA, DVI, HDMI, Displayport inputs, together with a 1.5ms low monitor response time, it has been designed as a direct replacement for CRT tube monitors.
Includes:
- 1 x 26 inch 4x3 Arcade LCD Monitor with powder coated steel frame

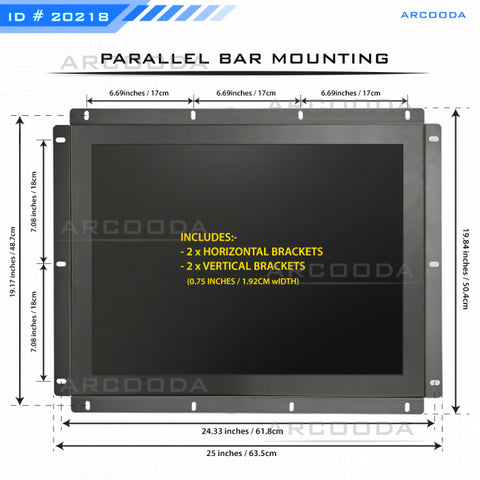

- 4 x Angle Bracket

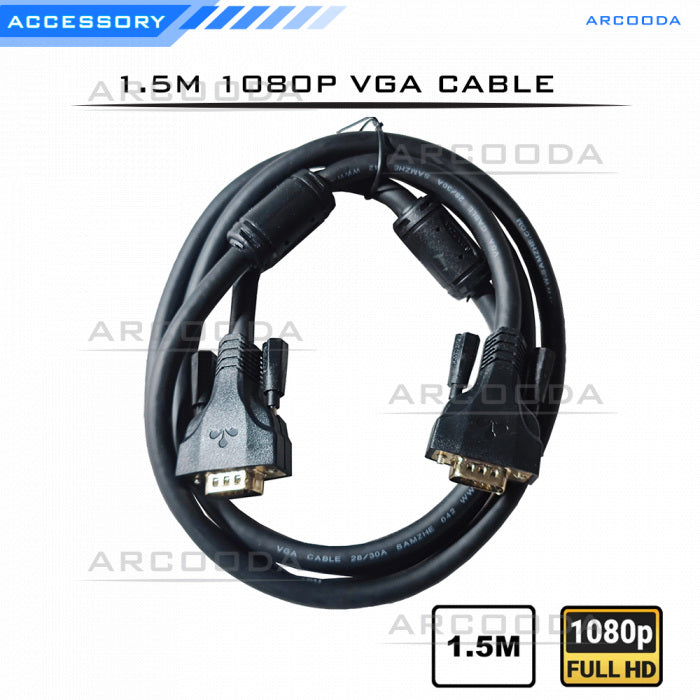

- 1 x VGA Cable
- 1 x HDMI Cable

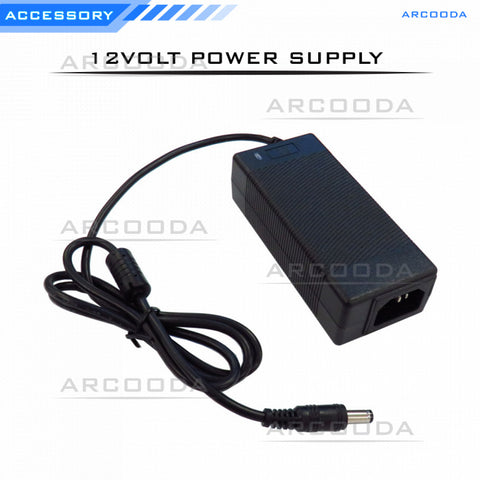

- 1 x 12 volt Power Supply for US outlets

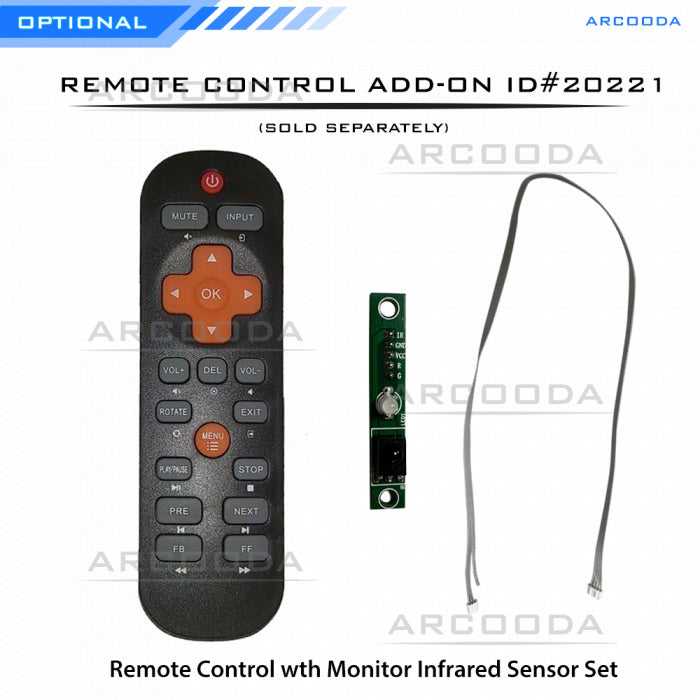

- 1 x Remote Control with Monitor Infrared Sensor Set
- 1x LCD OSD Monitor Adjustment Board
- 1x Monitor Adjustment Board 1.6m Extension Cable
- 1x RGB to VGA Adapter Board for Jamma
Details:

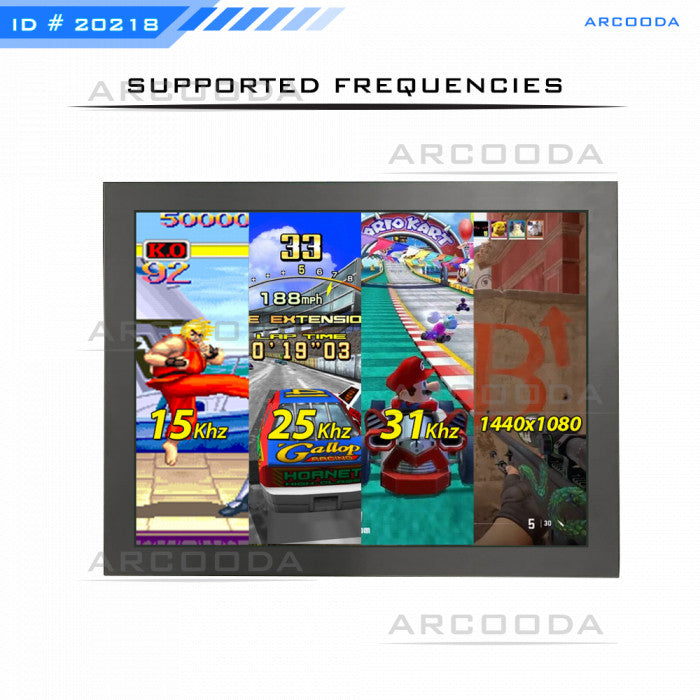

- Supports multiple variations of 15khz, 25kz, 31khz, arcade gaming resolutions.
- Latest firmware, over 10 years of constant firmware upgrades offering the widest possible support for most arcade game boards on "plug and play basis". From Sega Model 2 and 3 game boards, to Neo Geo, Namco System 256, Sega Triforce and your standard JAMMA arcade game boards
- Auto picture function that works, tuned with real arcade game boards. Just press the auto button for perfect centering of your arcade picture.

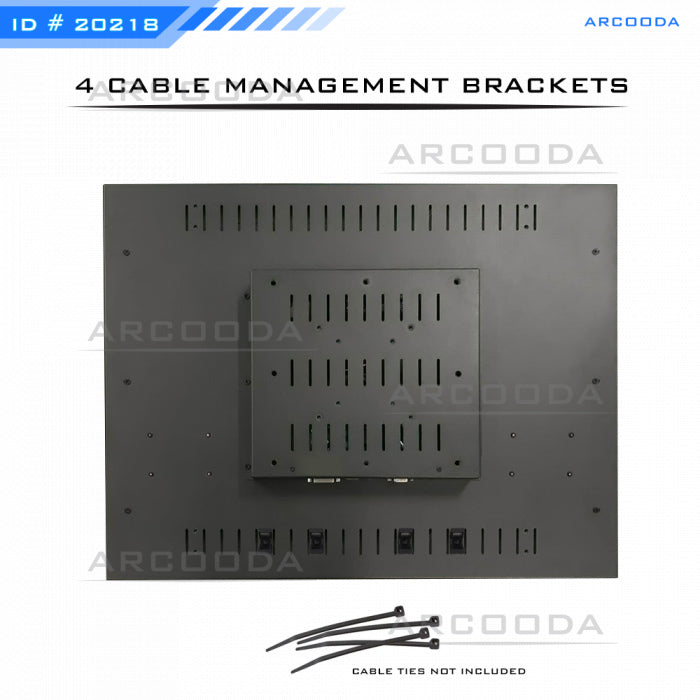

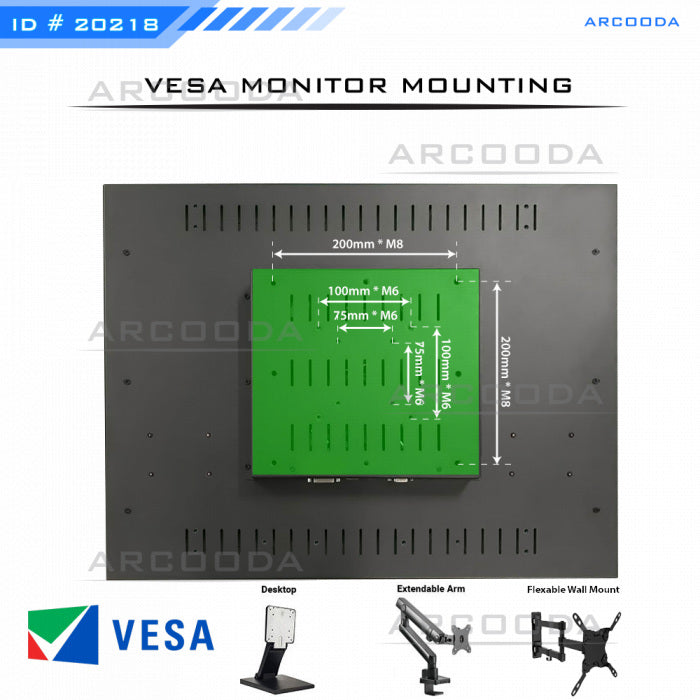

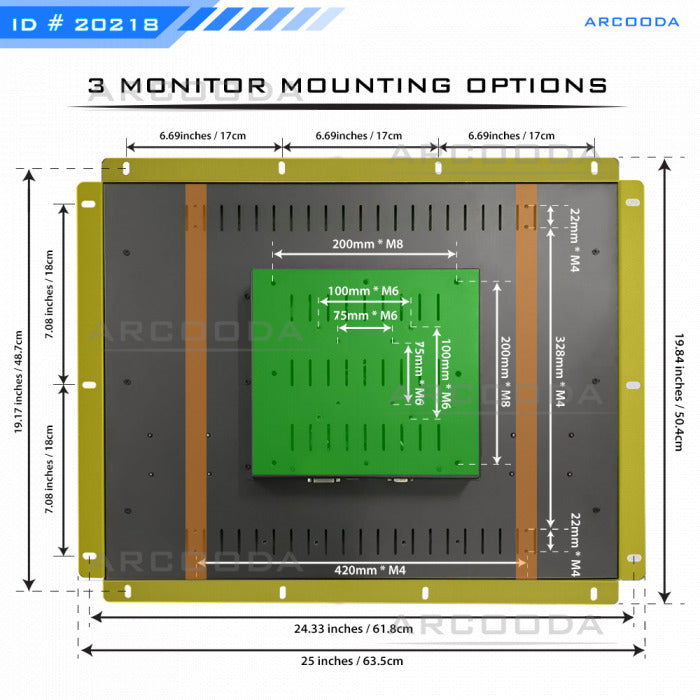

- multiple mounting options including angle brackets (included) rear mounting connection, and VESA mount. This offers the widest mounting options.
- Breakout OSD monitor control board. Mount the monitor adjustment board where it matters, in front of you.

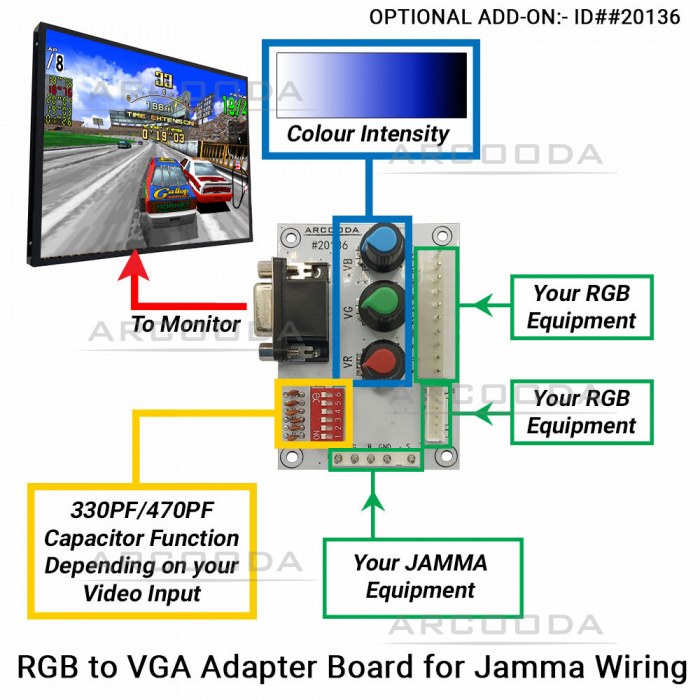

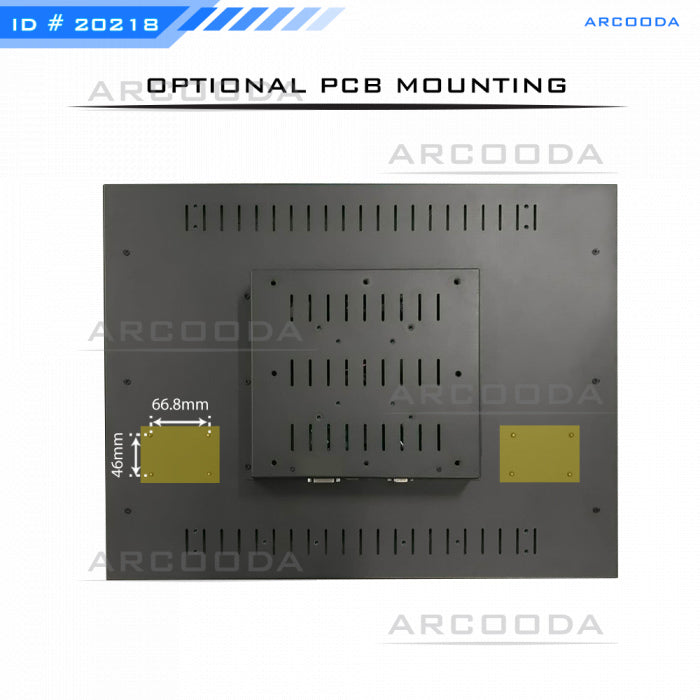

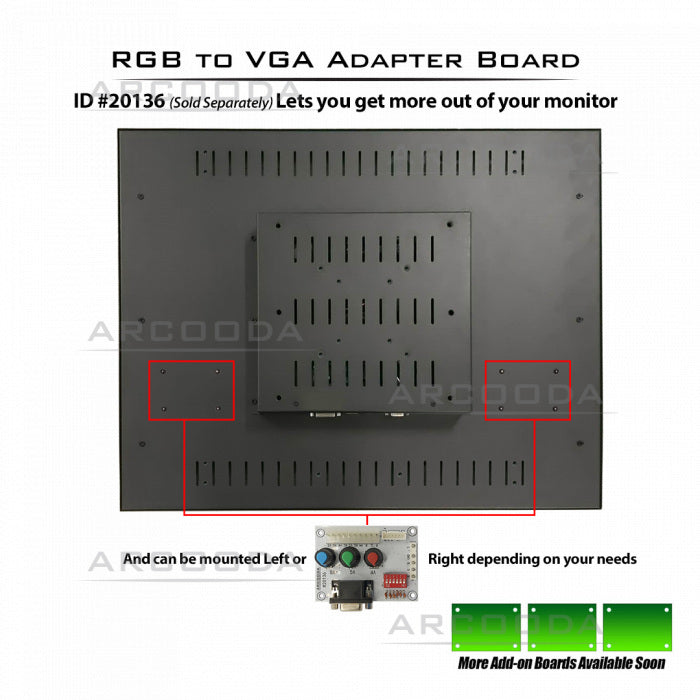

- RGB adapter PCB for plug and play with almost any CRT tube monitor wiring. This board also offers fine tuning of color via red,blue,green color potentiometers
- Full angle viewing is perfect for all arcade machines.
- Multiple screen adjustments including picture rotate function.
-
This is our recommended 26 inch monitor for arcade machine restoration/building as color reproduction has been tuned to our highly regarded 32 inch 16:9 ratio arcade monitor.
HOME RETRO & PC GAMING
- 1.3ms display lag
- Over 160 pre-programmed PC input modes including 240p, 480p, 720p, up to 1440x1080
- Freesync, Ultra HDR, DDCCI, UltraVivid, plus other monitor display settings
- Offering full display angle viewing with 16.7M color reproduction, 1200:1 contrast ratio
- VESA mounting for easy desktop mounting
- Connect Steam or other gaming libraries via Displayport, for HD gaming

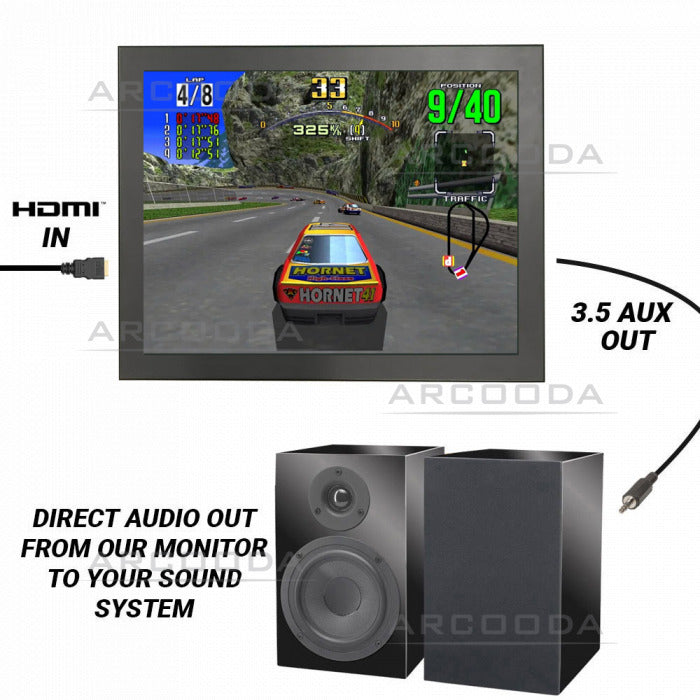

- Connect breakout speakers via the 3.5mm audio jack
- Includes remote control
This professional commercial grade 26-inch LCD monitor is designed for all arcade machines and retro game enthusiasts, serving as a direct replacement for CRT tube monitors. The 26" arcade LCD panel offers a 4:3 viewing ratio with RGB, VGA, and HDMI inputs, supporting 15 kHz, 24 kHz, 31 kHz, and high definition up to1440x1080 resolution. It features low response time, great color depth, and custom arcade monitor firmware. This arcade monitor is manufactured by Arcooda and comes with their custom monitor software for arcade game boards.
Detailed Specifications:
-
Manufacturer Arcooda
- Manufacturer Part No 20218
- Monitor Size : 26 inches
- Display Lag : 1.3ms
- Resolutions : 160+ pre-programmed settings including 15Khz/24khz/31Khz, 240p, VGA 640x480 to 1440x1080
- Backlight: WLED
- Display Mode : IPS

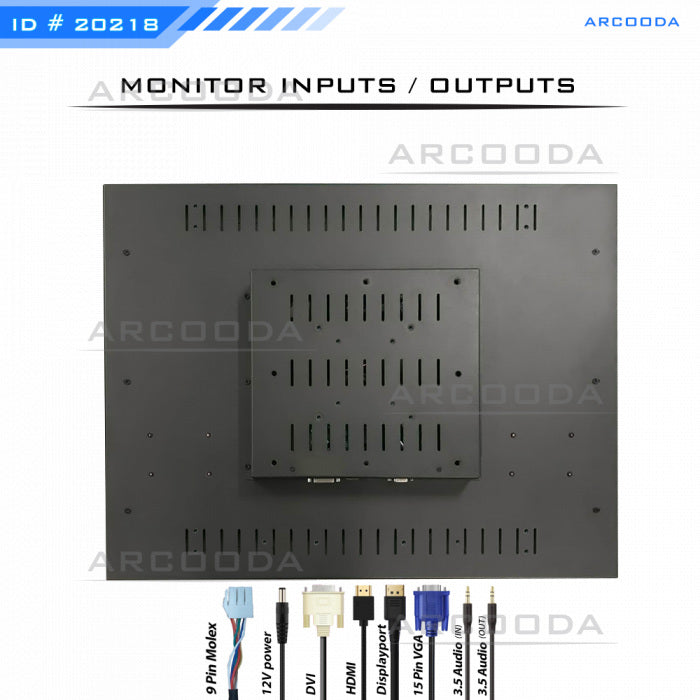

- Inputs : VGA, DVI, HDMI, DisplayPort
- Colour Depth : 8bit, 16,7 M colours

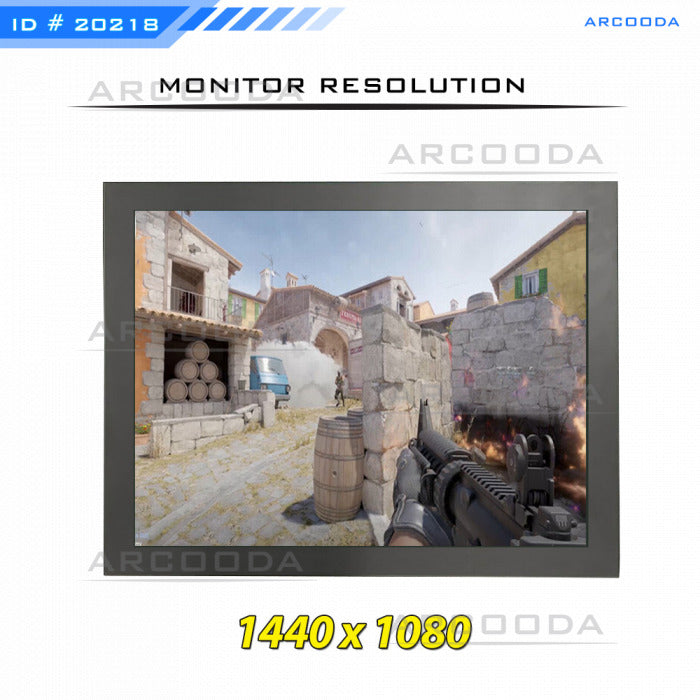

- Pixel Format : 1440 horizontal x 1080 vertical Pixel
- Luminance : 400 cd/m² (Typ.)
- Contrast Ratio : 1200 : 1 (Typ.) (TM)
- Refresh Rate : 60Hz
- Viewing Angles : 89°/89°/89°/89°

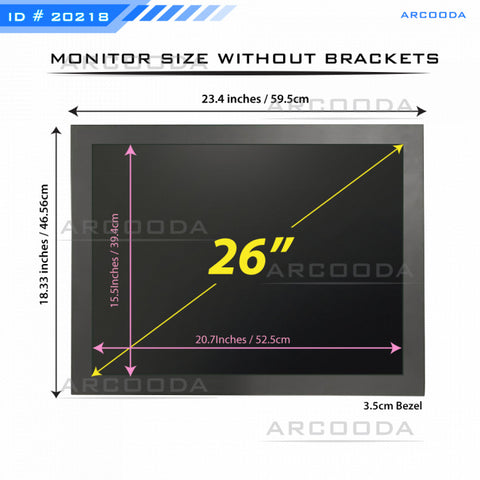

- Viewing-area Dimensions (cm's) : 52.5 x 39.4
- Physical Dimensions (cm's) : 59.5 x 46.4 x 8
- Power : +12vDC 3.5A (100-240vAC)
~If for any reason you are not happy with the monitor you can get a full refund within 30 days~
